“Will My Capsules Work in Every Machine?”
A Practical Compatibility Checklist for Private-Label Brands

Launch day should taste like triumph, not burnt coffee. So let’s rewind that nightmare scene and meet the people standing on the other side of the counter: a café owner who trusted your new pods to keep her morning rush humming, a dad picking up a cup of joe before work while preparing breakfast for the kids, or a hotel guest sneaking a quick pick-me-up before an all-day conference. When the brew head jams and a sticky spray ruins their moment, or worse – fries the machine, they don’t just blame the metal and plastic in their hands. They blame you.

Why a Misbehaving Pod Costs More Than You Think

Those drips across a white shirt? They turn into refund requests. The hotel’s repair bill? An invoice headed straight to your inbox. And the one-star review that calls your brand “cheap knock-offs”? It sticks around long after you’ve issued replacements and heartfelt apologies.

Compatibility is not a footnote in the product brief. It’s the invisible contract you sign with every customer who presses “brew” and trusts your pod to behave.

The good news: misbehaving capsules aren’t random accidents. They’re patterns you can spot and fix early. This guide walks you through those hidden pressure points step by step. By the end, you’ll know exactly how to turn “Will this pod work?” from a nagging worry into a confident yes, and let every launch taste as sweet as you planned.

Which Single-Serve Universe Are You Playing In?

Before any tooling begins, a private-label coffee brand must decide which single-serve “universe” it will serve. Each of the four dominant platforms imposes its own mix of geometry, pressure profile, and, sometimes, digital authentication. Getting those fundamentals right on day one prevents costly redesigns later.

1 | Nespresso Original Line – the high-pressure classic

The familiar aluminum dome measures roughly 37 mm at the rim and seats inside a 19-bar brew head. Because there is no on-capsule authentication, success is purely mechanical: keep the rim diameter, skirt angle and foil burst strength inside spec and your pod will brew.

2 | Nespresso Vertuo – barcode-gated centrifusion

Vertuo pods are far wider, about 57 mm, and spin at up to 7000 rpm while the machine’s laser reads a barcode that dictates water volume, temperature and rotational speed. Any capsule lacking the correct code is rejected, so private-label programs must license, or lawfully replicate, the barcode data set before thinking about tooling.

3 | Keurig K-Cup / K-Cup 2.0 – low pressure, high security

K-Cup brewers work at well under one bar of pressure, delivering drip-style rather than espresso extraction. Newer 2.0 machines add an infrared sensor that looks for a proprietary ink ring on the lid. If it’s missing, the screen flashes the notorious “Oops!” message. Mechanical fit is otherwise forgiving, but the optical check is non-negotiable.

4 | Lavazza A Modo Mio – Italy’s flange-sealed tub

This format uses a shallow plastic “tub,” ≈ 47 mm in diameter and 17–27 mm high, clamped at 8–9 bar rather than the 19 bar typical of Nespresso. No digital lock exists, yet the wide flange means a Nespresso-style rim will never seal, and that dedicated tooling is essential.

Will It Physically Fit? Engineering Rim, Skirt & Shell Geometry for Trouble-Free Extraction

Mechanical fit is the first, and most unforgiving, gate any capsule must pass. If the geometry is even a fraction off, the brew head may refuse to close, the seal may leak, or the pod may deform under pressure. The following checkpoints turn “close enough” into “production-ready.”

1 │ Rim Diameter: the primary sealing surface

Nespresso Original: 37 mm ± 0.10 mm at the rim.

Lavazza A Modo Mio: ≈ 47 mm on a tub-style flange.

Because the rim nests into a rigid metal cradle, even 0.15 mm of oversize can stop the lid from piercing; undersize invites leaks. Caliper every tenth piece during pilot runs and log Cp/Cpk to prove the tooling is holding tolerance.

2 │ Skirt Angle & Shell Depth: matching the clamp profile

Espresso systems rely on a conical clamp that squeezes the capsule against a silicone gasket. A skirt angle outside ±1° of spec concentrates force on one edge, causing “banana” deformation and burst failures at brew pressure (up to 19 bar on Original-line machines). Confirm both angle and depth with an optical comparator and run a 500-cycle fatigue test on first-off moldings.

3 │ Wall Thickness & Material Hardness: strength versus pierceability

Aluminum domes in the 40–60 µm range give enough rigidity to survive clamping yet still yield to the piercing needles. Higher-gauge shells resist dents in transit but require sharper, harder needles—raising wear on the brew head. Record Brinell hardness (HB) or Shore D for each supply lot and flag deviations greater than ±5%.

4 │ Tolerance Stack-Up: why “it’s only a few microns” can still jam

A rim that is 0.06 mm oversize, paired with a skirt angle 0.8° too steep, may add 0.12 mm to the effective diameter—enough to stop the clamp from locking. Use a simple Monte Carlo stack-up model during design reviews to visualize worst-case interference and set actionable guard bands for tooling.

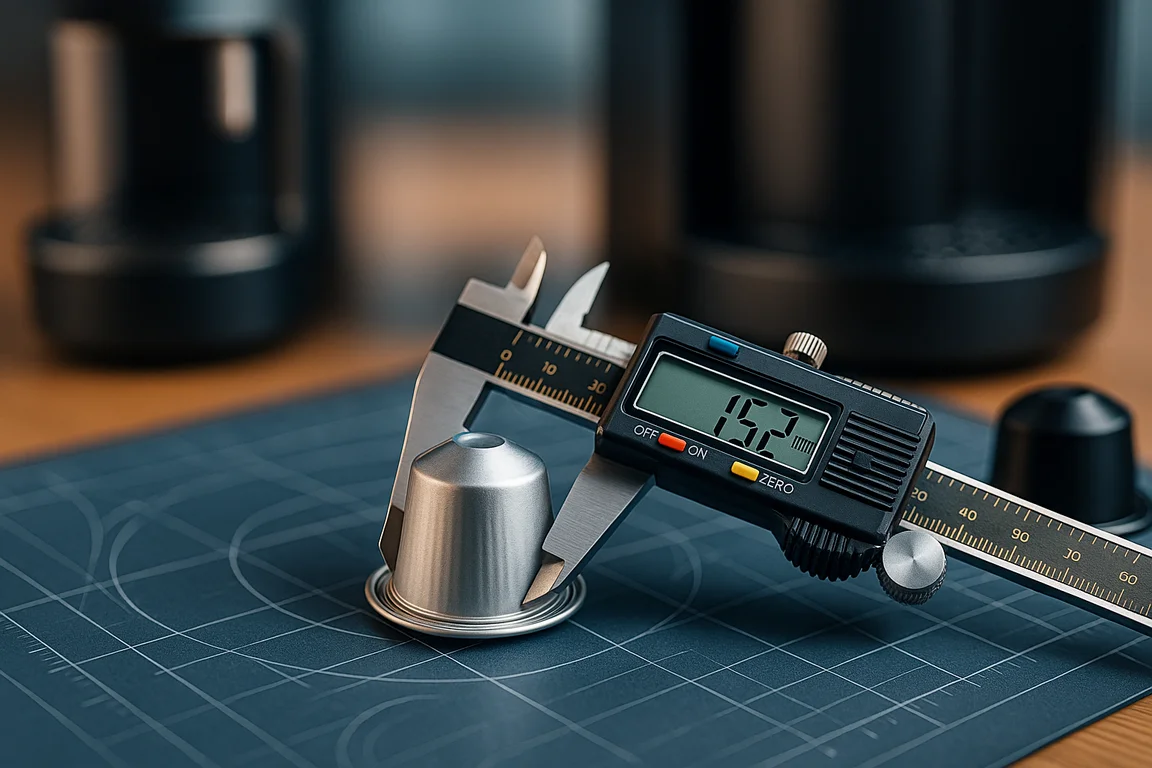

5 │ Rapid-Fit Validation: from calipers to insertion-torque tests

Insertion-force curve: Measure the Newtons required to seat and lock the pod; compare to OEM values.

High-speed video: Capture deformation during the clamp cycle to spot stress risers.

Burst-pressure rig: Incrementally pressurize sealed, empty shells in 1 bar steps until failure; targets should exceed operating pressure by at least 30%.

Documenting these checks builds a defensible quality file and slashes the risk of jams, leaks, or blow-outs once the product scales.

Precise control of rim, skirt, and shell geometry is non-negotiable. Partnering with coffee capsule suppliers that provide maximum precision, such as NovoCapsule, and can nail these dimensions – from foil gauge to barcode placement – will give you peace of mind and minimum jamming issues, complaints and returns.

How Thick Should the Lid Be (and Why Does It Matter at 19 Bar)?

The capsule’s lid does far more than keep coffee fresh. It must pierce cleanly, hold back up to 19 bar of brew pressure, and, for certain platforms, carry the optical “handshake” that grants the machine permission to brew. The checkpoints below convert those requirements into repeatable manufacturing targets.

1 │ Select the Right Foil Gauge

Typical range: 30 – 50 µm for die-cut coffee lids, with 38 – 40 µm the most common spec for Nespresso-style pods.

Trade-offs: Thicker foil improves dent resistance in transit but demands sharper, harder piercing needles and can distort barcode or ink-band printing. Anything below ~30 µm risks pinhole leaks during nitrogen flushing.

2 │ Use Embossing to Boost Burst Strength – Not Cosmetic Appeal

Emboss patterns (worm, dot, or cross) roughly triple the lid’s apparent thickness, up to 100–150 µm after forming, raising its buckle resistance without adding raw material mass. Specify the pattern early, since emboss tooling added later can shift print registration and throw off optical authentication.

3 │ Engineer the Heat-Seal Layer, Not Just the Aluminum

A multi-layer laminate (Al + PP/PE adhesive) must achieve two opposing goals: hermetic seal at 180–250 °C and an “easy-peel” failure mode if the consumer removes the lid before recycling. Monitor peel strength weekly. Values that creep above spec often signal over-cured adhesive or a winding-tension drift on the die-cut press.

4 │ Validate Piercing Dynamics at Operating Pressure

Original-line machines inject water at up to 19 bar, then rely on three piercing needles to tear the foil in a controlled star pattern. A lid that is even 5 µm too thick, or has an overly “work-hardened” emboss, can resist the needles, causing pressure to spike and the sidewall to rupture. Field failures posted on consumer forums almost always trace back to this mismatch.

5 │ Protect the Digital “Handshake”

Vertuo: The laser-etched barcode must remain perfectly flat. Deep embossing can create shadows that produce a read error.

Keurig 2.0: The proprietary ink band must survive the heat-seal cycle without bleeding or crazing, which is common when foil gauge or coating thickness drifts.

Include these surface-quality checkpoints in the lid supplier’s incoming QC sheet to avoid late-stage rejects.

6 │ Run Three Critical Validation Tests

Test	Target	Purpose
Burst pressure	≥ 25 bar (≈30 % safety over 19 bar)	Ensures no lid rupture under worst-case brewing spikes.
Peel strength	1.0 – 1.5 N / 15 mm	Confirms seal integrity yet allows consumer removal if needed.
Optical readability	0 % scan error over 500 samples	Verifies barcodes/ink rings remain machine-legible after emboss and heat-seal.

Documenting these tests in the device history file gives auditors and private-label clients data-backed confidence that every batch will survive the clamp, the pressure, and the consumer’s scrutiny.

Treat the lid as a structural and data-carrying component, not mere shrink-wrap. Dial in foil gauge, emboss, and seal chemistry together, and compatibility issues stay in the lab, and never arrive at the customer.

Tailoring the Coffee Bed – Grind Size, Dose, Tamp & Headspace

Once the capsule’s shell and lid are in spec, extraction quality is governed almost entirely by the “coffee bed.” Four variables – particle size, fill weight, compaction, and headspace – must be tuned together so that water meets the right resistance, solubles are captured efficiently, and no machine is overstressed in the process.

1 │ Specify a Platform-Appropriate Grind

Platform	Recommended grind range*	Rationale
Nespresso Original	250–350 µm (medium-fine)	High 19-bar pressure needs fines for crema but not so many that needles clog.
Nespresso Vertuo	280–380 µm	Centrifusion adds shear; a slightly coarser cut prevents over-extraction during 7000 rpm spin.
Keurig K-Cup	400–600 µm (medium)	Sub-1-bar spray relies on longer contact time; fines muddy the cup.
Lavazza A Modo Mio	260–360 µm	Traditional 8–9-bar pump similar to manual espresso.

*Ranges derived from capsule-filling guidelines and grinder conversion charts for reusable pods.

2 │ Hit the Target Dose Every Time

Nespresso Original: 5–6 g per pod (standard retail capsules contain ~5 g)

Vertuo: 7 g (espresso) up to 12.5 g (mug), encoded in the rim barcode

K-Cup: 9–12 g, with “extra-bold” SKUs climbing to 14 g

Inline check-weighers should hold ±0.05 g 3-sigma. Even a 0.2g drift skews brew ratios enough to trigger weak-shot complaints.

3 │ Control Tamp (Compaction) – Not Too Hard, Not Too Light

Capsule lines typically use vibratory settling or a mechanical plunger rather than a traditional barista tamper. Aim for a bed density of 0.50–0.55 g cm⁻³. Lower densities channel, while higher ones risk water stalls. Field tests show users adding just “light, finger-tight” pressure when refilling pods achieve consistent flow, over-tamping doubles stoppage reports. Validate with an insertion-force curve: locking torque shouldn’t exceed OEM spec by more than 10%.

4 │ Leave Intentional Headspace and Manage Degassing

Fresh-roasted grounds continue to release CO₂ for 6–24 h; sealing too early can balloon lids or burst seams. Most industrial fillers therefore:

Rest the coffee 24–48 hours post-roast (or 4–6 hours post-grind for fast-turn lines).

Dose nitrogen until residual O₂ falls below 1% to arrest oxidation and preserve crema potential.

Reserve 6–8% internal volume as headspace. Turbulence here improves extraction efficiency without causing channeling.

Headspace and inert atmosphere should be spot-checked daily with a headspace analyzer capable of ±0.2 % O₂ accuracy.

In short, grind, dose, tamp, and headspace work as a system. Dial them in for the specific pressure profile and flow path of each capsule platform, document them with tight process controls, and both flavor consistency and machine compatibility fall into line.

Barcodes, Chips, and “Lock-Outs”: Can Tech Block Your Pod?

Capsule geometry can be perfect, yet a machine will still refuse to brew if it cannot “recognize” the pod. In the last decade, two of the dominant platforms -Nespresso Vertuo and Keurig 2.0 – have embedded optical or laser-read codes that act as digital gatekeepers, while patents and emerging RFID concepts signal that even tighter controls may be ahead.

Nespresso Vertuo: laser-read barcodes and centrifusion logic
Every Vertuo capsule carries a fine black-and-silver barcode around the rim. As the pod spins, up to about 7 000 rpm, the machine’s laser scans the code to set brew volume, water temperature, and rotational speed. If the pattern is absent or unreadable, the brewer stops before extraction begins. Nestlé still holds active patents on Vertuo-compatible capsules until at least 2029, effectively blocking unlicensed third-party production.

Keurig 2.0: the ink-band “Oops!” test
Keurig’s 2.0 line works at low pressure, but an infrared sensor checks the foil lid for a specific ink ring. When the ring is missing or mis-printed, the display flashes the now-famous “Oops! Use a Keurig-licensed K-Cup” message. Consumer backlash was strong enough that Keurig later re-introduced its refillable “My K-Cup,” yet the optical check remains built into most 2.0 brewers.

Emerging approaches: RFID and beyond
Several appliance and packaging suppliers are testing low-cost RFID or NFC tags that could authenticate capsules, track stock levels, or prompt automatic re-ordering. Early pilots in Brazil’s cooperative supply chain already demonstrate RFID’s robustness in high-humidity environments, an attractive feature for single-serve brands expanding into warm climates.

Design and compliance considerations for private-label brands

Licensing vs. work-around. Gaining authorized access to Vertuo barcodes or Keurig ink formulations requires a supply agreement. Reverse-engineering carries legal and reputational risk.

Print quality and emboss interference. As explained, excessively deep lid embossing or foil stretch can scatter laser light or skew color density, triggering mis-reads. Validation should include optical scans after forming and heat-seal.

Firmware drift. Brand owners should periodically test capsules on the latest machine firmware—field hacks that bypassed DRM in 2015 were disabled by later updates, catching some unlicensed pods off-guard.

Digital authentication is no longer a niche feature. It is a strategic gate that can halt production plans if ignored. A successful private-label program budgets time and resources for code licensing or flawless optical replication, and builds ongoing firmware testing into its quality system.

Heat, Humidity, Altitude: Will Logistics Break a Perfect Pod?

Once geometry, lid design and the coffee bed are under control, the capsule still has to survive a supply chain that can look more like a stress lab than a straight-line journey. Three conditions do most of the damage – excessive heat, high humidity and sudden drops in atmospheric pressure. And each one leaves a different failure fingerprint. Treat them as engineering inputs, not after-thoughts.

Heat: Oxidation accelerates above 30 °C
Field data show that at warehouse temperatures near 40 °C the residual-oxygen level inside aluminum pods rises faster than at 25 °C, driving staling reactions and flattening crema long before shelf-life testing predicts. Set accelerated-aging trials at 40 °C/45% RH for at least four weeks and require sensory and headspace O₂ results to stay within launch spec; anything darker or staler signals the laminate or one-way valve is undersized for hot-season shipping.

Humidity: Moisture warps shells and delaminates foil
Moisture uptake is equally unforgiving: gelatin and multilayer plastics gain water, swell and relax the heat-seal, while roast-gas loss turns foam into flat espresso. Best-practice guides for nutraceutical capsules recommend 35 – 65% RH and 15 – 25 °C storage to keep moisture in the 3 – 8% window. Coffee pods benefit from the same discipline. Write those limits into every third-party warehouse contract and log data with inexpensive RH-loggers taped inside master cartons to catch excursions before customers do.

Altitude: Internal pressure can double in a cargo hold
During air freight or mountain trucking the outside pressure falls, the nitrogen “headspace” inside the pod expands and the foil sees tension it never meets on the fill-line. Flexible packaging tests show standard seals can start leaking around 17 000 ft and rupture near 38 000 ft if the laminate or sealant is under-spec’d. Simple fixes include stronger biaxially-oriented films, slightly lower nitrogen back-flush to leave the pod less taut, or using a bulk shipper that vents gradually through a micro-valve.

Proving it in the lab

Climate conditioning (ASTM D4332). Cycle sample pods for seven days at 40 °C/75 % RH, then 5 °C/30 % RH, repeating twice. Inspect for lid creep, shell buckling and weight gain.

Altitude chamber. Ramp 101 kPa → 60 kPa in ten minutes, hold for one hour, return to ambient. Fail the lot if any pod shows visible foil doming or loses ≥0.5 g.

Drop and vibration. With pods now pressure-stressed, run ASTM D5276 1 m free-fall and ASTM D4728 vibration to ensure seals survive real-world knocks.

Packaging & insurance safeguards
Specify single-wall corrugate strong enough for 32 ECT, add impact-indicator labels on export pallets and insure high-value lots against heat damage during port delays. It costs pennies per sleeve to prevent the reputational hit of foil blow-outs at your customer’s front door.

To sum up, treat environmental conditioning as part of the capsule’s core specification. By qualifying materials at high heat, high humidity and low pressure, and baking those guardrails into packaging and logistics contracts, you keep flavor, foam and customer confidence intact all the way from filling line to final shot.

How Do We Proof-Test Compatibility Before the Big Run?

Design specs are theories. Compatibility testing is where those theories meet the real world. A structured validation program lets you discover weak points while fixes are still inexpensive, rather than after thousands of sleeves are in the field. Below is a step-by-step framework that moves a capsule from drawings to production with documented confidence:

Instrument the basics on the bench.
Start with precision calipers, optical comparators, and a torque gauge to confirm that rim diameter, skirt angle, and lock-in force all sit safely inside the tolerances you set. Add a burst-pressure rig and a compression fixture so you can watch how the lid, shell, and seal behave as pressure climbs well beyond normal brewing conditions.

Brew on reference machines, not just lab equipment.
As soon as a prototype passes mechanical checks, run it through multiple retail brewers—fresh out of the box and with a few months of hard use. Record shot time, beverage weight, and any visual anomalies (stall, spray, premature unlock). Even a perfect lab trace means little if the consumer’s machine rejects the pod on the first morning.

Cycle for fatigue, not for show.
Clamp and release the same capsule 500 to 1,000 times, interspersing heat pulses that mimic the thermal shock of fast duty cycles. Watch for lid creep, shell cracking, or seal relaxation. Failures that appear only after dozens of cycles point to material fatigue that standard burst tests will never reveal.

Scale to a controlled pilot run.
Before full production, schedule a run large enough to catch statistical outliers, often 10,000 to 20,000 units made across at least two shifts. Track jam rate, burst rate, and brew-time variance in real time; anything trending above your action limits calls for an immediate line adjustment or tooling tweak.

Lock the data into a living quality file.
Summarize every measurement, acceptance limit, and corrective action in a single document set. When auditors or private-label clients ask how you know a pod won’t jam their machines, you can show empirical proof rather than promises.

Rigorous proof-testing is not an optional insurance policy; it is the backbone of any private-label program that aims to ship on time, stay off the returns desk, and protect brand reputation from day one.

When the Customer Hotline Rings: A Quick-Fire Troubleshooting Playbook

Even the most carefully validated capsule will eventually meet a machine that has been abused, under-descaled, or fitted with a worn piercing plate. When that happens, the quality of your first-line response can determine whether a minor nuisance escalates into a refund, a one-star review, or worse, a social-media pile-on. A robust, documented playbook keeps your brand in control.

Recognize the recurring failure signatures
Most complaints fall into four patterns:

Weak or watery shot – extraction finishes far below the target volume or tastes thin.

Complete stall – brew head locks but no liquid emerges within ten seconds.

Burst or leak – coffee sprays from the lid perimeter or the machine overflows.

“Incompatible” message – the brewer refuses to start or stops mid-cycle.

Teach support agents to tag every ticket with one of these codes so trends surface quickly.

Triage with three quick questions
Before issuing replacements, agents should confirm:

Machine hygiene: When was the last descaling cycle? Mineral build-up can mimic capsule faults.

Batch identification: What is the lot code on the sleeve? Pinpointing batches isolates manufacturing drift.

Brew count: How many successful shots has this particular machine already pulled with your pods? A high success rate suggests wear or misuse, not a systemic defect.

Scripts keep the exchange concise and consistent, reducing the temptation to speculate or over-promise.

Capture photos and, when economical, return samples
A smartphone picture of a burst lid or jammed rim is often enough for engineering to diagnose root cause. For high-volume complaints, provide prepaid mailers so customers can return failed capsules; physical evidence is invaluable for verifying seal delamination, rim deformation, or barcode scuffing.

Close the loop with operations in real time
Daily or weekly, funnel tagged ticket data to production and R&D. If “weak shot” reports spike on a specific batch, schedule an immediate grind-size audit. If “incompatible” errors climb after a firmware update, replicate the issue on bench machines and re-test barcode integrity.

Empower agents with transparent, generous remedies
Offer an on-the-spot sleeve replacement or refund for any validated defect, and make the process friction-free. Clear, generous policies turn a disappointment into proof that your brand stands behind its product.

Track the right metrics
Monitor first-response time, resolution time, and complaint recurrence rate by lot. A steady decline in repeats signals that corrective actions are working; a plateau indicates deeper systemic issues still hiding in the process.

A disciplined support playbook transforms inevitable field hiccups into actionable manufacturing data and, just as important, into customer moments that reinforce trust rather than erode it.

Ready to Sleep at Night? Next Steps with NovoCapsule

You have just walked through every hidden pressure point, from rim geometry to firmware drift, that can turn a promising private-label launch into a customer-service headache. Compatibility is no longer a guessing game – it is an engineering discipline you can measure, document, and master.

Where NovoCapsule fits in:
NovoCapsule’s value proposition aligns point-for-point with the compatibility safeguards outlined in this guide:

Swiss-engineered accuracy from day one. All capsules are manufactured in Einsiedeln, Switzerland, under ISO 9001 and BRC food-safety certification. That quality system enforces tight Cp/Cpk targets on rim diameter, skirt angle, seal strength, and burst pressure, exactly the dimensions that prevent jams and blow-outs in Nespresso® machines.

A patented, extra-wide sealing area. NovoCapsule’s proprietary geometry gives each pod a broader “landing zone” for the lid, allowing filling lines to weld faster and more cleanly, even when stray coffee fines are present. The result is a stronger hermetic seal, lower leakage risk, and smoother insertion in the brew head.

Freedom-to-operate, zero patent headaches. Because the capsule design is protected by NovoCapsule’s own patents and cleared for Nespresso compatibility, private-label roasters can scale globally without infringement concerns or royalty surprises.

Robust, food-grade aluminum walls. The company sources high-purity aluminum that holds shape during high-speed filling, resists deformation in shipping, and withstands 19-bar extraction pressure at the consumer’s machine, key to eliminating burst or crush complaints.

Color, foil and branding flexibility built in. With eleven standard capsule colors, mixed pallets, custom PMS matching, and printable lid foils, NovoCapsule lets brand owners differentiate SKUs without compromising mechanical tolerances.

Documented compatibility and batch QC. Every production lot undergoes seal-integrity, residual-oxygen, and machine-compatibility testing across a spread of Nespresso models, and results are archived in a traceable quality dossier, making it easy to satisfy retailer audits or address field questions with data.

Pilot-to-production support. NovoCapsule can deliver short pilot runs for cupping and market validation, then ramp to multi-million-unit monthly volumes on the same tooling, so the geometry, seal profile, and sensory performance proven in testing carry straight into commercial launch.

In short, NovoCapsule provides the material strength, geometric precision, and documented quality controls that turn the checklist you just read into a repeatable, market-ready reality, without adding legal or operational friction for private-label partners.

Make compatibility the least of your worries and let flavor, branding, and customer experience take centre stage, exactly where they belong.

If sleeping soundly the night before launch matters to you, schedule a 30-minute technical consultation.

Leave us your details below and we’ll get back to you shortly.

The Five-Minute Compatibility Checklist (Printable)

Print this checklist, date-stamp each run, and archive with the batch paperwork.

If every box is ticked, the capsule is ready for commercial release.
